Quick Answer
Most FPV video problems come from four places: a damaged antenna, a channel clash, electrical noise, or heat. Work through them in that order. Start with the cheapest and easiest checks first, like antennas and cables, before you touch settings or buy new parts.
Analog Static vs Digital Breakup
Analog and digital video fail in different ways, and knowing which one you have saves time.
Analog video shows static as fuzzy lines, color bands, or a rolling picture. It gets worse slowly as you fly farther away. This is normal behavior for a weak analog signal, not a fault by itself.
Digital systems like DJI or Walksnail behave differently. The image looks clean until the link gets too weak, then it freezes, turns to blocks, or drops out fully for a moment. A digital system does not fade gently. If your digital feed is glitchy at short range, something is wrong with the hardware, not the distance.
Write down when the problem happens: at launch, at a certain distance, near buildings, or only at full throttle. This pattern points straight at the cause.
Check the Antennas First
Antennas cause more video trouble than any other part. Start here every time.
- Look for a bent, cracked, or crushed antenna on the drone or the goggles. A crash can bend the connector inside without any visible damage outside.
- Check that the antenna connector (usually U.FL, MMCX, or SMA) is fully seated. A loose connector causes random dropouts that come and go.
- Confirm the drone antenna sits clear of carbon fiber and metal. Carbon blocks radio signals, so an antenna mounted too close to a frame arm loses range fast.
- Make sure the goggle antennas are the right type for your video system and are pointing up, not folded against the goggles.
If you have a spare antenna, swap it in as a test. This is the fastest way to confirm or rule out antenna damage.

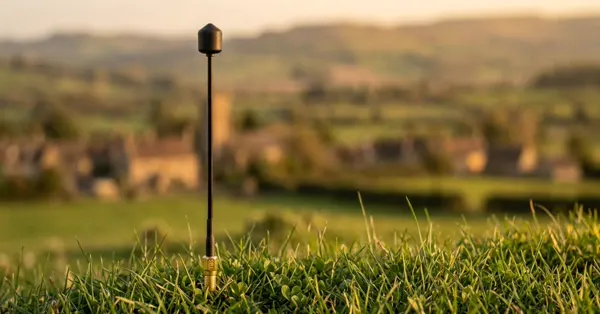

For more detail on antenna types and placement, read this FPV antenna guide.
Channel and Frequency Conflicts
If you fly analog video, or an older digital system that shares a band with other pilots, a channel clash will show as sudden static or bars that come and go when someone else is flying nearby.
- Change your video channel to one no one else is using, and test again.
- At group flying sites, agree on channels with other pilots before you take off.
- If breakup only happens at a certain field or event, it is very likely interference, not a fault with your drone.

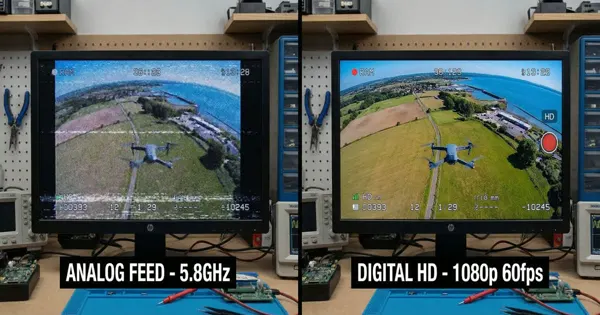

Modern digital systems handle interference much better than analog, since they use a wider range of channels and can hop around noise. Read more in this comparison of analog and digital FPV.
Power and Ground Noise
Electrical noise from the flight controller, motors, or camera can show up as lines, dots, or a shaky picture, even with a perfect antenna and clear channel.
- Add or check a capacitor across the battery pads on the video transmitter (VTX). A missing or damaged capacitor is a common cause of noisy video.
- Check that the VTX, camera, and flight controller share a clean, common ground wire. A poor ground connection is one of the top causes of video noise.
- Route the video and antenna wires away from motor wires and the ESC. High current cables next to signal wires cause interference.
- Try a different battery. A pack with high internal resistance can cause voltage sag that shows up as flickering video.
Heat and Loose Connections
Heat changes how electronic parts behave, so a video problem that only appears after a few minutes of flying often points to heat.
- Feel the VTX after a flight. If it is too hot to touch comfortably, it may need a heat sink or better airflow.
- Check that all solder joints on the VTX, camera, and antenna pigtail are solid. A dry joint can work when cold and fail once warm.
- Reseat any plug-in connectors, since heat cycles can loosen them over time.
VTX and Camera Settings
Sometimes the picture itself is the problem, not the radio link.
- Match your VTX power output to your flying distance. More power is not always better, and pushing too much power can overheat the VTX. See this guide on VTX power levels for guidance.
- Check the camera's PAL or NTSC setting matches your goggles, since a mismatch causes a rolling or torn image on analog systems.
- Update your digital system's firmware if the manufacturer has released a fix for known video bugs.
A Step-by-Step Fix Order
Follow this order so you do not waste time on the wrong fix:
- Inspect and reseat both antennas, then swap one for a known good spare.
- Change the video channel and retest, especially around other pilots.
- Check the ground wiring and the capacitor on the VTX pads.
- Feel for heat after a short flight and check solder joints.
- Review VTX power and camera settings.

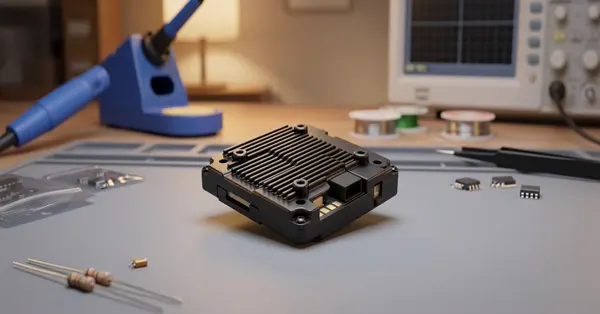

- If problems continue only at range, review your setup with this guide on Walksnail video range.
Always remove the propellers before you touch wiring or plugs on the bench, and never work on a connected LiPo battery near flammable materials.
